Power on
In the off state, long press “Button A” on the remote-control for 1 second to turn it on. The remote-control will vibrate once and enter Connection Mode, and the signal indicator flashes red slowly(1 second/flash). Then short press (for 0.2 second) the power switch of the skate-board once to enter the Connection Mode, and the indicator flashes red slowly (1 second/-flash). Note: After connecting, the remote-control indicator and the skateboard indicator are always on.
Shutdown
Manual shutdown: In the on state, long press “Button A” for 2 seconds to shut it down and the remote-control will vibrate once. Long press the power switch for 1 second to shut the skateboard down.
Note: If the remote-control is left on after the skateboard is shut down, the remote-control indicator flashes red slowly, and the remote-control vibrates once as a reminder. Similarly, if the skateboard is left on after the remote-control is shut down, the skateboard power indica-tor flashes slowly.
Auto shut down: When the skateboard is at quiescent state and there is no operation for 5 minutes, the remote-control and the skateboard will be automatically shut down.
Connection and pairing (Already paired in factory)
When both the remote-control and the skateboard are all in the off state, first, long press the power switch of the skateboard for 5 seconds, the skateboard indicator flashes red quickly, prompting to enter the pairing state. And then long press the “Button A” on the remote-con-trol for 5 seconds, the signal indicator starts to flash quickly, indicating entering the pairing mode. The two short vibrations and a long vibration of the remote-control indicate the pairing succeeds. When the pairing succeeds, the remote-control signal indicator and the skateboard indicator shine red.
Battery indicator
Remote-control battery indicator: When the remote-control is turned on, if the detected remote-control battery is lower than 25%, the remotecontrol battery indicator shines red. If the battery is sufficient, the indicator shines green. When the remote-control indicator shines red, please charge it in time. When the voltage is lower than safe voltage, the power output will be shut down. Under such circumstance, please brake immediately.Remark: When the skateboard is connected after turning on, the battery indicator will show for 2 seconds. After 2 seconds, the indicator shuts down. Short press Button A at any time to show the battery of the skateboard and the remote-control again for 2 seconds, and then it turns off.
Control of accelerator/brake
Roll the roller forwards to accelerate, Roll the roller backwards to brake.
Direction switch of the skateboard
In the forward state, stir the “Switch C” backwards, the remote-control will short vibrate once, and the indicator will flash backwards to indicate “reverse mode” ; In the backward state, stir the “Switch C” forwards, the remote-control will short vibrate once, and the indicator will flash forwards to indicate “forward mode”. Note: This operation is only valid when the accelerator lever on the remote-control is at the central position (zero accelerating).
Gear switch

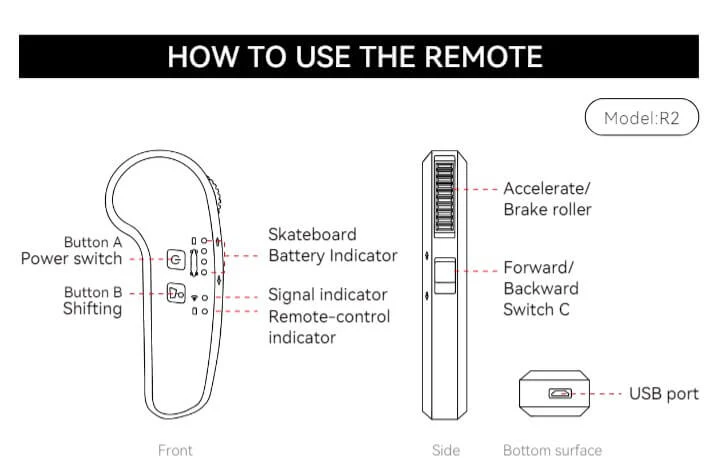

The physical Button B on the remote-control in the diagram is for gear switch of the skate-board.When switch to corresponding gear by short pressing, the battery indicator of skate-board will flash and move in low, medium and high speed.Note: This operation is only valid when the roller is at the central position (zero accelerating).
Charging
Charging of remote-control: When the remote-control is connected to the charger, it will vibrate once and its batteryindicator flashes red. The indicator will turn green when the battery is fullRemarks: Other actions cannot be operated on the remote-control in charging state. If unplug the charging cable, the remote-control will vibrate once and shut down automatically.
Electric skateboard charging connection
A. Open the rubber lid on the charging interface, insert the plug, the charger indicator will shine green.
B. Connect the charger cable with 100-240V AC, and the charger indicator will shine red during the charging process.
C. When charging is completed, close the lid firmly. When the battery is full, the charger indicator shines green.
